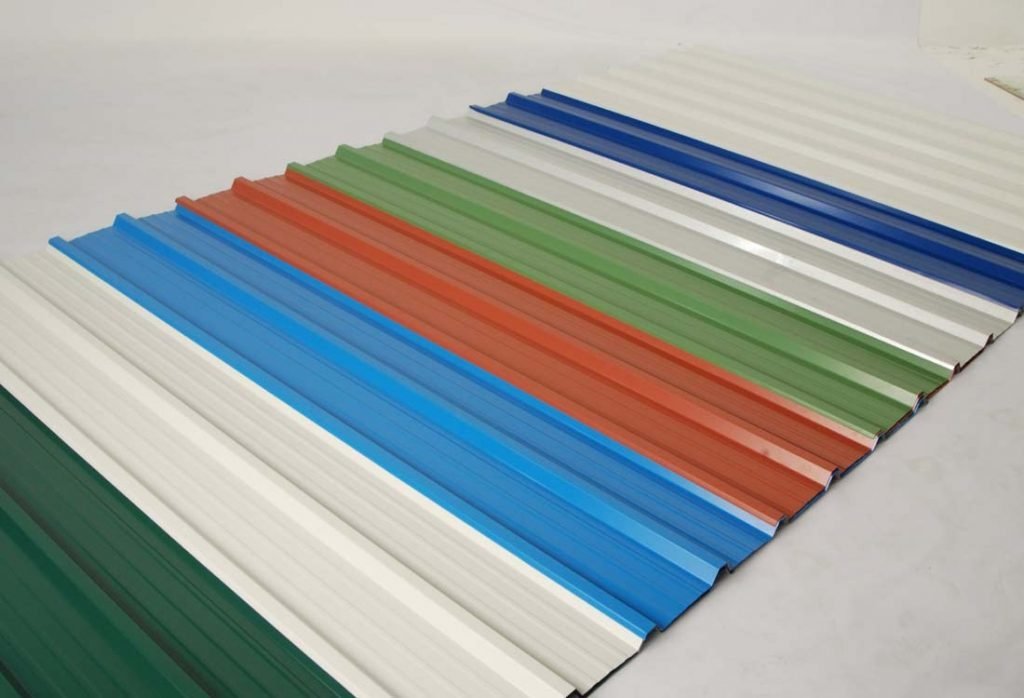

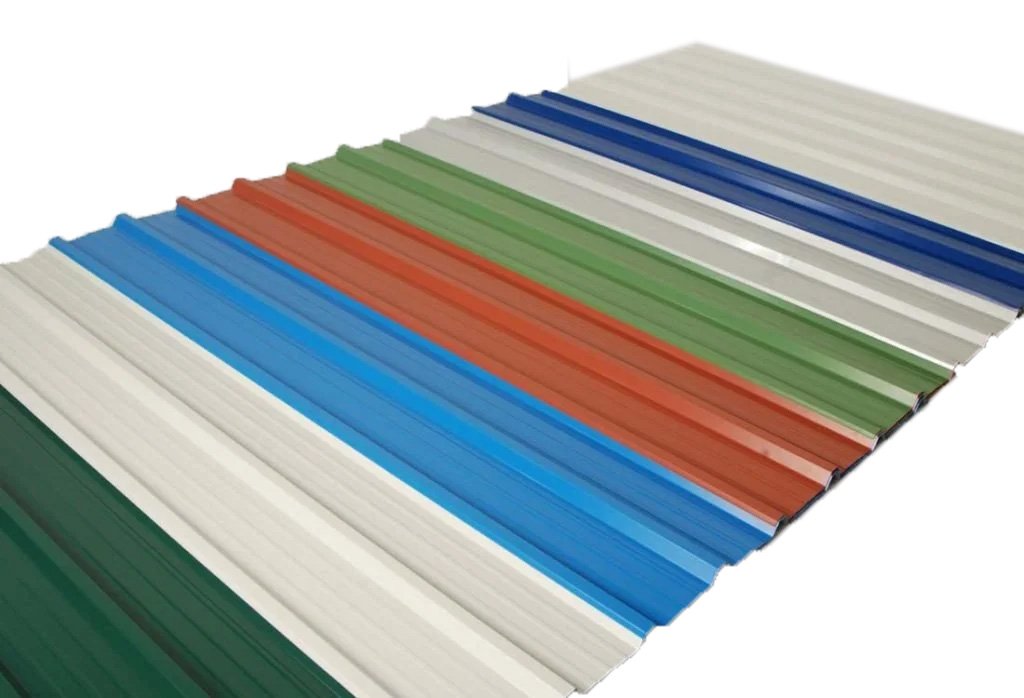

Color Coated Galvalume / Galvanized Sheet
Overview
Color Coated Galvalume and Galvanized Sheets are among the most trusted and durable materials used in the roofing and cladding industry worldwide. For nearly two centuries, coated steel sheets have been a cornerstone of modern construction — valued for their strength, corrosion resistance, and aesthetic appeal.
At BSSM Infra, we supply premium-quality Color Coated Galvalume and Galvanized Sheets engineered for superior performance in industrial, commercial, and residential applications. These sheets combine the strength of steel with the protection of zinc/aluminum alloy coatings, ensuring long-lasting performance even under extreme weather conditions.
Coated steel sheet is a unique building material that merges high tensile steel strength with the corrosion protection of zinc or aluminum-zinc coatings. It can be easily punched, roll-formed, bent, and fabricated into a wide variety of structural and decorative profiles — making it the preferred choice for modern architecture and industrial roofing.
Our Pre-Painted Galvalume and Galvanized Sheets are coated and color-finished to enhance protection, durability, and visual appeal.
- Plot No.100, TIF MSME green Industrial Park, Dandumalkapur, Choutuppal, Yadadri Bhuvanagiri District.
- +91 98480 80349
- +91 93926 51133
Technical Specification
| Parameter | Galvalume Sheet | Galvanized Sheet |
|---|---|---|
| Coating Mass | 70AZ / 150AZ / 200AZ | 90 GSM / 120 GSM |
| Yield Strength | 550 MPa / 350 MPa | 240 MPa / 350 MPa |
| Sheet Thickness | 0.30 / 0.35 / 0.40 / 0.45 / 0.47 / 0.50 / 0.55 / 0.60 mm | — |
| Colours | Sky Blue / Off White / Mist Green / Brick Red | — |
| Paint Finish | Glossy / Matte | Glossy / Matte |
| Painting Thickness (Top) | 18 – 22 microns | 18 – 22 microns |
| Painting Thickness (Bottom) | 5 – 7 microns | 5 – 7 microns |
| Width | 1.06 m / 1.085 m | — |
| Pitch (crest to crest) | 200 mm / 250 mm | — |
| Maximum Length | Up to 15 meters | Up to 15 meters |
Paint Properties Comparison
| Property | SUPER/HIGH Durable Polyester | RMP | SMP | PVDF | PVC |
|---|---|---|---|---|---|
| Flexibility | Good | Fair | Poor | Good | Excellent |
| UV Resistance | Good | Poor | Fair | Excellent | Good |
| Gloss Retention | Excellent | Good | Good | Poor | Fair |
| Chalking Resistance | Good | Poor | Fair | Excellent | Fair |
| Cost | Marginal | Lowest | High | Very High | High |
| Durability (Years) | 10 | 8 | 10 | 15 | — |
| SST (Hours) | 1000 | 750 | 750 | 1000 | 1000 |
Types of Paint Coatings
| Type | Description | Environment | End Use | Resin System | Pigments | Gloss @60° | Durability / Warranty |
|---|---|---|---|---|---|---|---|
| PVDF | Highest UV-resistant coating based on PVDF & Acrylic resins. Ideal for harsh climates and facades of high-rise buildings and malls. | C3 | Facades, commercial buildings | PVDF & Acrylic Resin (70:30) | High Performance Inorganic | 10–35% | 10–12 yrs |
| SDP | Best UV resistance among polyester-based coatings. | C2 | Roofing, residential cladding | Super Durable Polyester | High Performance Pigments | 10–80% | 8–12 yrs |
| SMP | Silicon-modified polyester coating for high-temperature areas. | C2 | Roofing & Cladding | Silicon Modified Resin | Organic/Inorganic | 10–80% | 5–10 yrs |
| RMP | Regular modified polyester-based coating for general use. | C1 | Roofing, ceilings, interiors | Modified Polyester Resin | Organic/Inorganic | 10–80% | — |
Profile Options

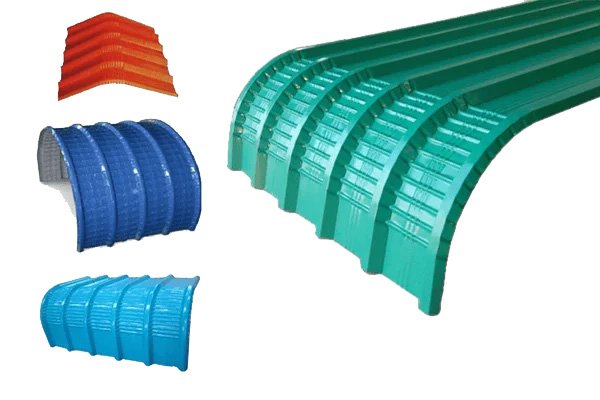

Crimp Sheets
Crimped curved sheets offer versatility and creativity in industrial and domestic architecture. These sheets can be formed into concave, convex, or wavy shapes, adding distinctive style and aesthetic value to buildings while maintaining strength and leak-proof performance.
Tile Profile Sheets
Inspired by traditional Mangalore clay tiles, these sheets combine elegance with durability. Available in various colors, they enhance the visual appeal of roofs while providing excellent corrosion resistance, sound insulation, and fire-retardant properties.
Advantages
- Superior Durability – Combines the strength of steel with the protection of aluminum-zinc or zinc coatings.
- Weather Resistance – Performs reliably even in harsh climatic conditions.
- Thermal Efficiency – Keeps interiors cooler in summer and warmer in winter.
- Sound Insulation – Provides a quiet and comfortable roofing system.
- Lightweight & Easy Installation – Reduces structural load and speeds up construction.
- Aesthetic Appeal – Available in multiple colors and finishes for modern design flexibility.
- Eco-Friendly – 100% recyclable and energy efficient.
- Pre-Engineered Buildings (PEB)
- Industrial Sheds & Warehouses
- Commercial Complexes
- Cold Storage Units
- Residential Roofing & Wall Cladding
- Airport Terminals, Malls & Showrooms
- Car Parking Sheds, Canopies & Awnings
At BSSM Infra, we ensure:
- Use of high-grade raw materials
- Strict quality testing for coating uniformity and adhesion
- Customized sizes and profiles as per project requirements
- Bulk supply for small and large industrial projects
- Competitive pricing with on-time delivery
Why Choose Us
- Advanced manufacturing & color coating technology
- Expertise in large-scale roofing & cladding projects
- Strong after-sales and technical support
- Proven performance in industrial and infrastructure sectors
